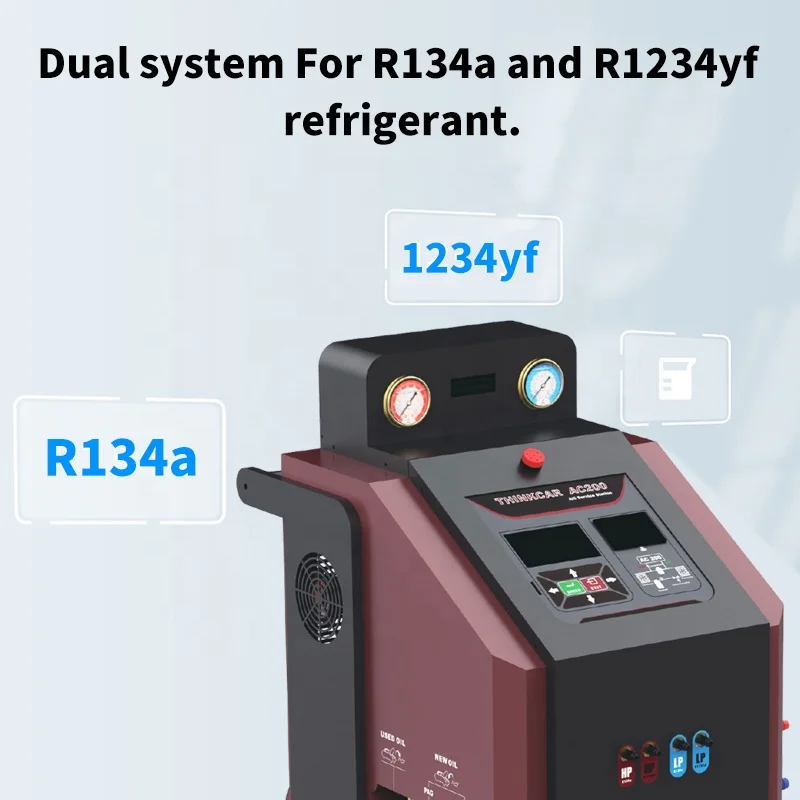

THINKCAR AC-200 A/C System Recovery Flushing Machine Air Condition Ac Flush Machine Dual System for R1234a&R1234yf

A、For R134a and R1234yf refrigerant. B、Fully automatic, easy to operate. C、Internal pipeline of A/C system flushing, effectively cleared the internal greasy and fouling, to restore the A/C system performance. D、With forward flushing, reverse flushing, and pulse flushing functions, which greatly improve the cleaning effect. E、Using large-size glass tube with LED backlighting, can effectively observe the entire cleaning process. F、Vertically installing the HP & LP gauges let the operator be able to observe the pressure parameters timely even in the car. G、Unique design of the pipeline to achieve the high recycling rate no matter with the gas or the liquid. H、Easy to operate with the concise operating interface. I、Designed with large size LCD. J、Database. K、Program and database can be updated. L、With printer. M、The self-cleaning function of the equipment can ensure that the refrigerant stored in the equipment meets the reuse level.

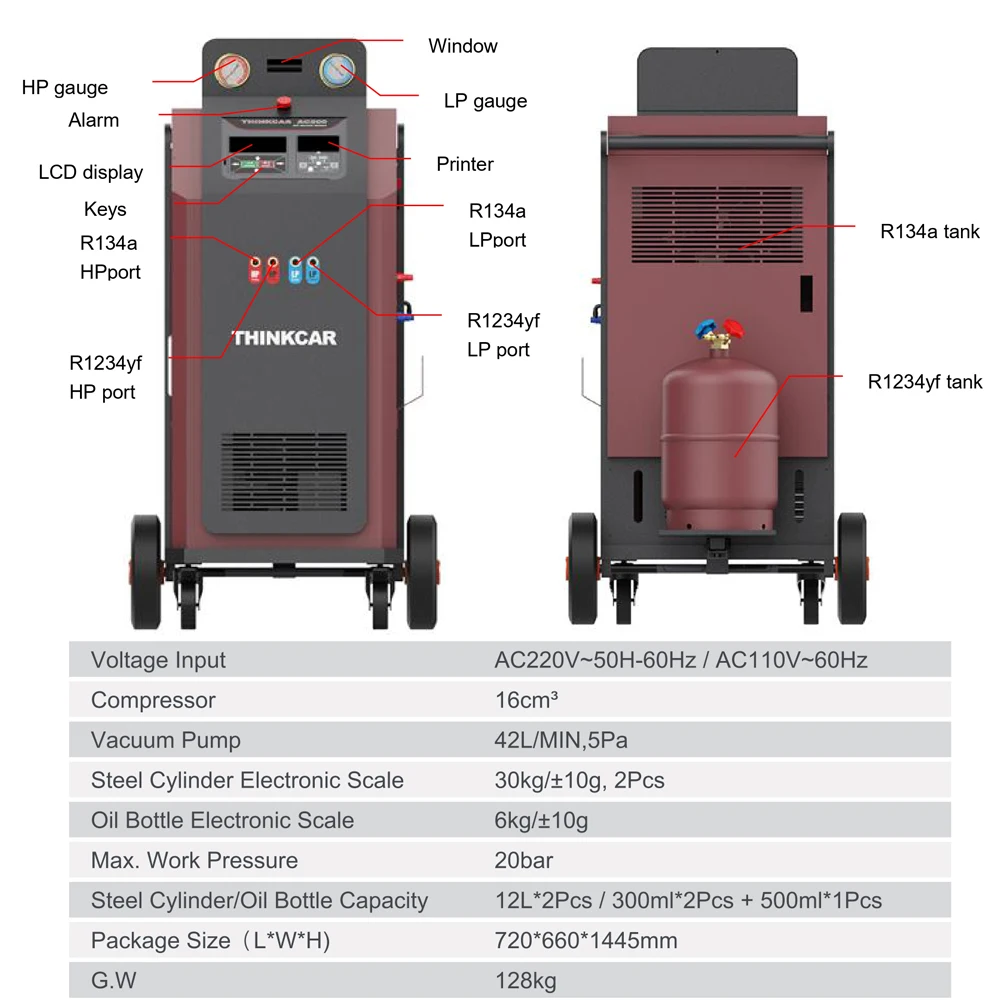

A、Working conditions:
Ambient temperature: 0~50°C
Relative humidity: ＜85%
B、Voltage input: □AC220V±10％~50/60Hz
□AC110V±10％~60Hz (see as label)
C、Compressor：16cm³
D、Vacuum pump: 42L/MIN,5Pa
E、Load cell for tank: 30kg/±10g, 2pcs
F、Load cell for oil bottle: 6kg/±10ml
G、Tank: 12L, 2pcs
H、PAG oil bottle: 300ml
I、POE oil bottle: 300ml
J、Used oil bottle:500ml
K、LCD display: 240mm*128mm
L、Working pressure: max. 20bar
M、HP gauge: -1bar~35bar
N、LP gauge: -1bar~20bar
O、Max. Work Pressure:20bar
P、Backlighting：LED

A、Dual refrigerant system
B、Support dual refrigerant oil type
C、Automatic flushing
D、Automatic recovering/recycling
E、Automatic/manual used oil drain
F、Vacuum timing.

G、Automatic/manual new oil injection
H、Quantitative recharging
I、Each function can operate independently
J、Auto mode
K、Database
L、Print
