OBDSTAR P50 Airbag Reset Tool with CAN FD Adapter

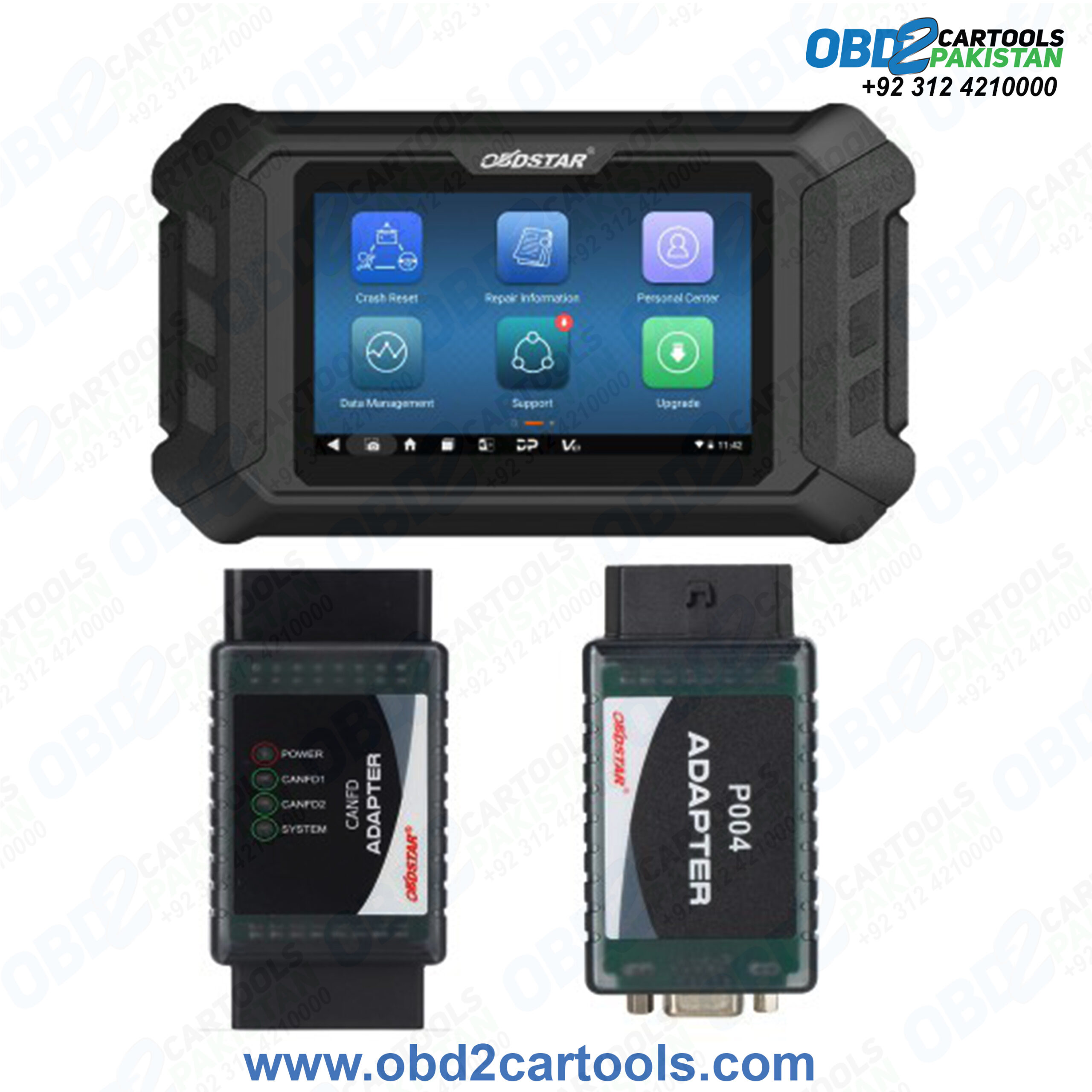

CAN FD Adapter:
OBDSTAR CAN FD adapter is designed for diagnosing ECU systems of cars meeting with CAN FD protocols.
Why buy the CAN FD adapter with P50?
The following models need to be worked with the CAN FD Adapter:
HYUNDAI 95910-AO100 MOBIS 95512
HYUNDAI 95910-AO200 MOBIS 95512
HYUNDAI 95910-AR000 VEONEER TC233X-16F
HYUNDAI 95910-AR100 VEONEER TC23XX-32F
HYUNDAI 95910-AR200 VEONEER TC23XX-32F
HYUNDAI 95910-AR300 VEONEER TC23XX-32F
HYUNDAI 95910-AT000 MOBIS 95512
HYUNDAI 95910-AT010 MOBIS 95512
HYUNDAI 95910-AT100 MOBIS 95512
HYUNDAI 95910-AT300 MOBIS 95512
HYUNDAI 95910-CG100 MOBIS 95512
HYUNDAI 95910-CG400 MOBIS 95512
HYUNDAI 95910-CG500 MOBIS 95512
HYUNDAI 95910-CH310 CONTINENTAL R7F7015803
HYUNDAI 95910-CH320 CONTINENTAL R7F7015803
HYUNDAI 95910-CJ310 CONTINENTAL R7F7015803
HYUNDAI 95910-CU000 VEONEER TC23XX-16F
HYUNDAI 95910-CU300 VEONEER TC23XX-16F
HYUNDAI 95910-CV000 VEONEER TC23XX-16F
HYUNDAI 95910-CV100 VEONEER TC23XX-16F
HYUNDAI 95910-CV200 VEONEER TC23XX-16F
HYUNDAI 95910-CV300 VEONEER TC23XX-16F
HYUNDAI 95910-CW000 CONTINENTAL R7F7015803
HYUNDAI 95910-CW100 CONTINENTAL R7F7015803
HYUNDAI 95910-CZ000 CONTINENTAL R7F7015803
HYUNDAI 95910-CZ200 CONTINENTAL R7F7015803
HYUNDAI 95910-DS000 VEONEER TC23XX-16F
HYUNDAI 95910-DW320 CONTINENTAL R7F7015803
HYUNDAI 95910-GI000 VEONEER TC233X-16F
HYUNDAI 95910-GI100 VEONEER TC233X-16F
HYUNDAI 95910-GI200 VEONEER TC233X-16F
HYUNDAI 95910-GI300 VEONEER TC233X-16F
HYUNDAI 95910-JI000 VEONEER TC22XX-16F
HYUNDAI 95910-K5000 CONTINENTAL R7F7015803
HYUNDAI 95910-KL000 VEONEER TC233X-16F
HYUNDAI 95910-KL200 VEONEER TC233X-16F
HYUNDAI 95910-L6100 VEONEER TC23XX-32F
HYUNDAI 95910-L8000 MOBIS 95512
HYUNDAI 95910-L8050 MOBIS 95512
HYUNDAI 95910-L8100 MOBIS 95512
HYUNDAI 95910-L8200 MOBIS 95512
HYUNDAI 95910-N0000 MOBIS 95512
HYUNDAI 95910-N1000 MOBIS 95512
HYUNDAI 95910-N6000 MOBIS 95512
HYUNDAI 95910-N8000 MOBIS 95512
HYUNDAI 95910-N8100 MOBIS 95512
HYUNDAI 95910-P2000 VEONEER TC23XX-32F
HYUNDAI 95910-P2020 VEONEER TC23XX-32F
HYUNDAI 95910-P2100 VEONEER TC23XX-32F
HYUNDAI 95910-P2150 VEONEER TC23XX-32F
HYUNDAI 95910-P2200 VEONEER TC23XX-32F
HYUNDAI 95910-P2300 VEONEER TC23XX-32F
HYUNDAI 95910-P4000 VEONEER TC23XX-32F
HYUNDAI 95910-P4020 VEONEER TC23XX-32F
HYUNDAI 95910-P4100 VEONEER TC23XX-32F
HYUNDAI 95910-P4200 VEONEER TC23XX-32F
HYUNDAI 95910-P4250 VEONEER TC23XX-32F
HYUNDAI 95910-P4300 VEONEER TC23XX-32F
HYUNDAI 95910-P4400 VEONEER TC23XX-32F
HYUNDAI 95910-P4450 VEONEER TC23XX-32F
HYUNDAI 95910-R0000 VEONEER TC23XX-32F
HYUNDAI 95910-R0010 VEONEER TC23XX-32F
HYUNDAI 95910-R0100 VEONEER TC23XX-32F
HYUNDAI 95910-R0500 VEONEER TC23XX-32F
HYUNDAI 95910-R0600 VEONEER TC23XX-32F
HYUNDAI 95910-R5000 VEONEER TC23XX-32F
HYUNDAI 95910-T1000 VEONEER TC23XX-32F
HYUNDAI 95910-T1010 VEONEER TC23XX-32F
HYUNDAI 95910-T1020 VEONEER TC23XX-32F
HYUNDAI 95910-T1100 VEONEER TC23XX-32F
HYUNDAI 95910-T1200 VEONEER TC23XX-32F
HYUNDAI 95910-T4000 MOBIS 95512
HYUNDAI 95910-T4100 MOBIS 95512
HYUNDAI 95910-T6100 VEONEER TC23XX-32F
HYUNDAI 95910-T6120 VEONEER TC23XX-32F
HYUNDAI 95910-T6200 VEONEER TC23XX-32F
HYUNDAI 95910-T6400 VEONEER TC23XX-32F
KIA 95910-N7010 CONTINENTAL R7F7015803
KIA 95910-N7030 CONTINENTAL R7F7015803
KIA 95910-N7050 CONTINENTAL R7F7015803
KIA 95910-N7070 CONTINENTAL R7F7015803
KIA 95910-N9000 CONTINENTAL R7F7015803
KIA 95910-N9010 CONTINENTAL R7F7015803
KIA 95910-N9020 CONTINENTAL R7F7015803
KIA 95910-N9030 CONTINENTAL R7F7015803
KIA 95910-N9050 CONTINENTAL R7F7015803
KIA 95910-N9060 CONTINENTAL R7F7015803
KIA 95910-N9080 CONTINENTAL R7F7015803
KIA 95910-N9110 CONTINENTAL R7F7015803
KIA 95910-P0000 CONTINENTAL R7F7015803
KIA 95910-P0010 CONTINENTAL R7F7015803
KIA 95910-P0100 CONTINENTAL R7F7015803
KIA 95910-P0110 CONTINENTAL R7F7015803
KIA 95910-P1310 CONTINENTAL R7F7015803
KIA 95910-P1320 CONTINENTAL R7F7015803
KIA 95910-P1330 CONTINENTAL R7F7015803
KIA 95910-P1340 CONTINENTAL R7F7015803
KIA 95910-P1350 CONTINENTAL R7F7015803
KIA 95910-R2110 CONTINENTAL R7F7015803
KIA 95910-R2120 CONTINENTAL R7F7015803
KIA 95910-R2310 CONTINENTAL R7F7015803
KIA 95910-R2320 CONTINENTAL R7F7015803
TOYOTA 89170-02W60 DENSO R7F7016443
TOYOTA 89170-02Y10 DENSO CYT2B93BAC
TOYOTA 89170-08110 DENSO R7F7016443
TOYOTA 89170-08210 DENSO R7F7016443
TOYOTA 89170-08230 DENSO R7F7016443
TOYOTA 89170-0A100 DENSO R7F7016443
TOYOTA 89170-0A140 DENSO R7F7016443
TOYOTA 89170-0A200 DENSO R7F7016443
TOYOTA 89170-0A220 DENSO R7F7016443
TOYOTA 89170-0C660 DENSO R7F7016443
TOYOTA 89170-0C670 DENSO R7F7016443
TOYOTA 89170-0C690 DENSO R7F7016443
TOYOTA 89170-0DE20 DENSO R7F7016843
TOYOTA 89170-0DE30 DENSO R7F7016843
TOYOTA 89170-0DF30 DENSO R7F7016843
TOYOTA 89170-0DF40 DENSO R7F7016843
TOYOTA 89170-0DF50 DENSO R7F7016843
TOYOTA 89170-0DG60 DENSO R7F7016843
TOYOTA 89170-0DG70 DENSO R7F7016843
TOYOTA 89170-0E330 DENSO R7F7016443
TOYOTA 89170-0E340 DENSO R7F7016443
TOYOTA 89170-0E350 DENSO R7F7016443
TOYOTA 89170-0H220 DENSO R7F7016843
TOYOTA 89170-0H230 DENSO R7F7016843
TOYOTA 89170-0R280 DENSO R7F7016843
TOYOTA 89170-12G10 DENSO R7F7016443
TOYOTA 89170-42690 DENSO R7F7016443
TOYOTA 89170-42700 DENSO R7F7016443
TOYOTA 89170-42720 DENSO R7F7016443
TOYOTA 89170-42730 DENSO R7F7016443
TOYOTA 89170-42E50 DENSO R7F7016443
TOYOTA 89170-42F10 DENSO R7F7016443
TOYOTA 89170-48E10 DENSO R7F7016443
TOYOTA 89170-48E30 DENSO R7F7016443
TOYOTA 89170-48E50 DENSO R7F7016443
TOYOTA 89170-48E70 DENSO R7F7016443
TOYOTA 89170-48J20 DENSO R7F7016443
TOYOTA 89170-52P60 DENSO R7F7016843
TOYOTA 89170-52P70 DENSO R7F7016843
TOYOTA 89170-52P80 DENSO R7F7016843
TOYOTA 89170-52Q10 DENSO R7F7016843
TOYOTA 89170-52Q20 DENSO R7F7016843
TOYOTA 89170-52Q30 DENSO R7F7016843
TOYOTA 89170-52Q50 DENSO R7F7016843
TOYOTA 89170-52Q60 DENSO R7F7016843
TOYOTA 89170-52Q70 DENSO R7F7016843
TOYOTA 89170-60D70 DENSO R7F7016443
TOYOTA 89170-60D80 DENSO R7F7016443
TOYOTA 89170-60F10 DENSO R7F7016443
TOYOTA 89170-60F80 DENSO R7F7016443
TOYOTA 89170-60F90 DENSO R7F7016443
TOYOTA 89170-60G00 DENSO R7F7016443
TOYOTA 89170-60G70 DENSO R7F7016443
TOYOTA 89170-62050 DENSO R7F7016443
TOYOTA 89170-78090 DENSO R7F7016443
TOYOTA 89170-82010 DENSO R7F7016443
TOYOTA 89170-F6010 DENSO R7F7016443
TOYOTA 89170-K0010 DENSO R7F7016843
TOYOTA 89170-K0030 DENSO R7F7016843
TOYOTA 89170-K0060 DENSO R7F7016843
TOYOTA 89170-K0070 DENSO R7F7016843
TOYOTA 89170-K0080 DENSO R7F7016843
How to use CAN FD adapter:
Use female connector connecting with OBDII-16 and male Connector connecting with DLC Diag Socket.

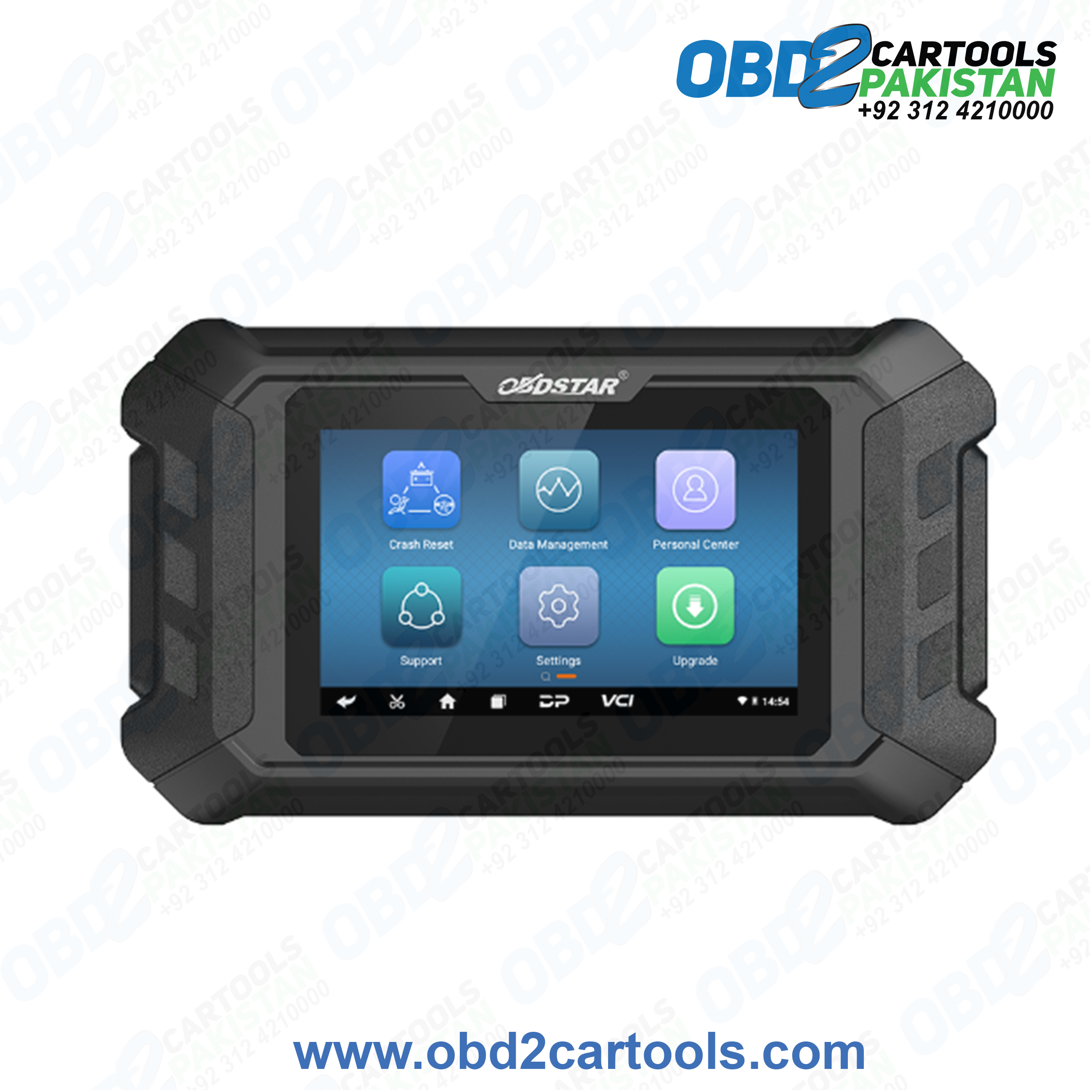

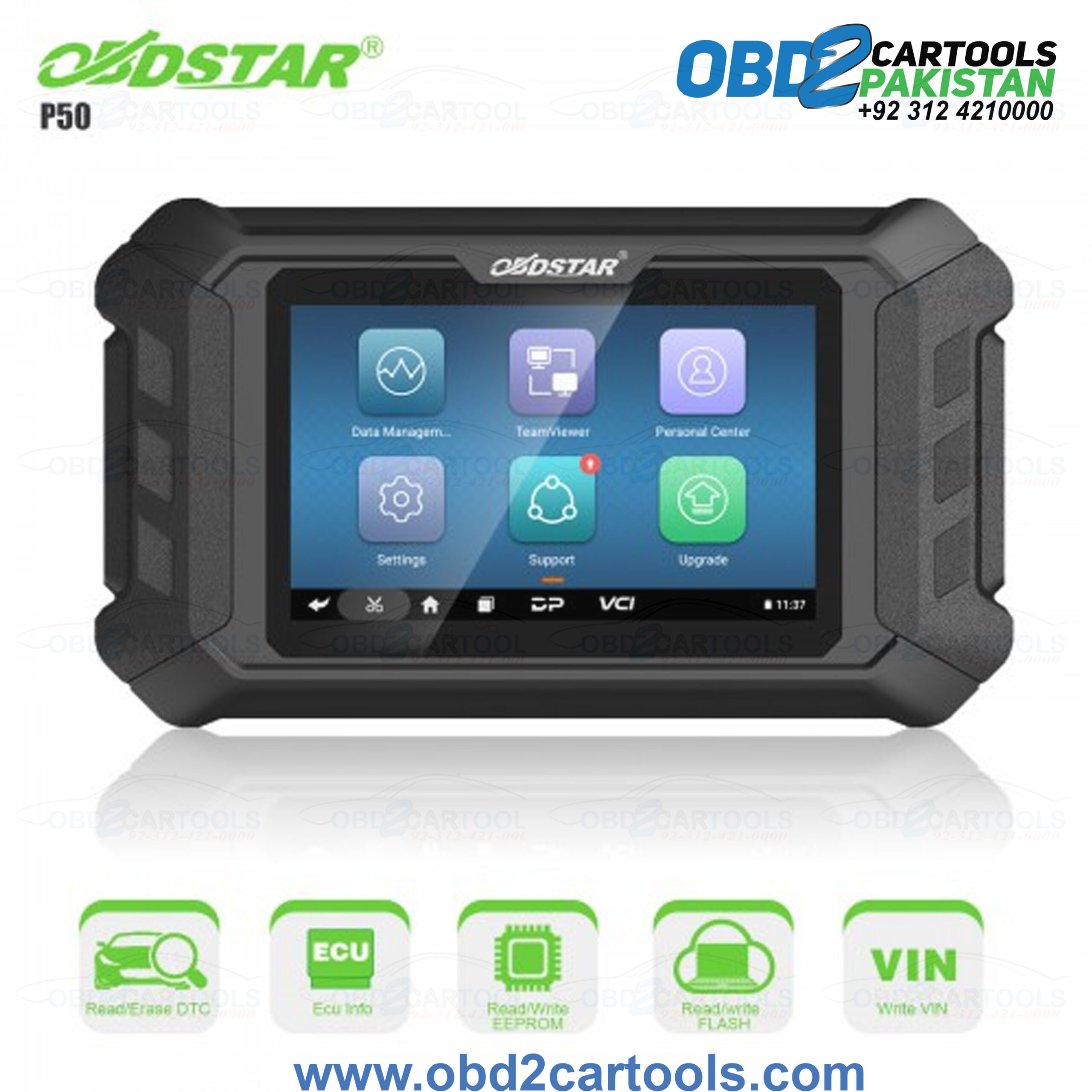

OBDSTAR P50:
OBDSTAR P50 is the new generation of intelligent airbag reset equipment of OBDSTAR Technology Co., Ltd. It has powerful function and wide coverage, covering 94 brands and over 14900 ECU part No. and some MCU. It’s based on the RK3128 Quad-Core processor, extremely fast and smooth; equipped with a 5-inch capacitive touch screen, touch sensitive.
Language: English only, can’t change to other languages.
Ship from US/ EU warehouse, fast delivery & no tax to the USA and EU countries.
OBDSTAR P50 Basic Functions:
1. Supports one-click airbag reset for 94 brands and over 14900 ECU part No.
2. Supports fuzzy search for ECU part No.
3. Contains clear BENCH mode wiring diagram
4. Contains powerful and complete description files for fault code
5. One year update for free. 150 USD for update per year from second year. ( 90 USD for another year of update if you renew it before expires)
6. Supports Hyundai/Kia TC2xxx types bench airbag reset with CAN FD adapter
7. Newly add Battery Reset for Audi/Volvo by BENCH
8. Support Tesla bench airbag reset
9. Support SAS reset function
Attention:
Unable to add function of ECU clone.
OBDSTAR P50 Advanced Functions:
Read ECU Information: Read ECU part number, historical frame number, current frame number, collision record.
Read DTC
Erase DTC
Read EEPROM: Read EEPROM data from ECU for backup
Write EEPROM: Write EEPROM data into ECU
Read FLASH
Write FLASH
Write VIN: Write back the correct VIN after executing [Crash Data Clear]
Clear/Erase Crash: Clear ECU crash data
Unlock ECU
Battery Reset for Audi and Volvo by BENCH

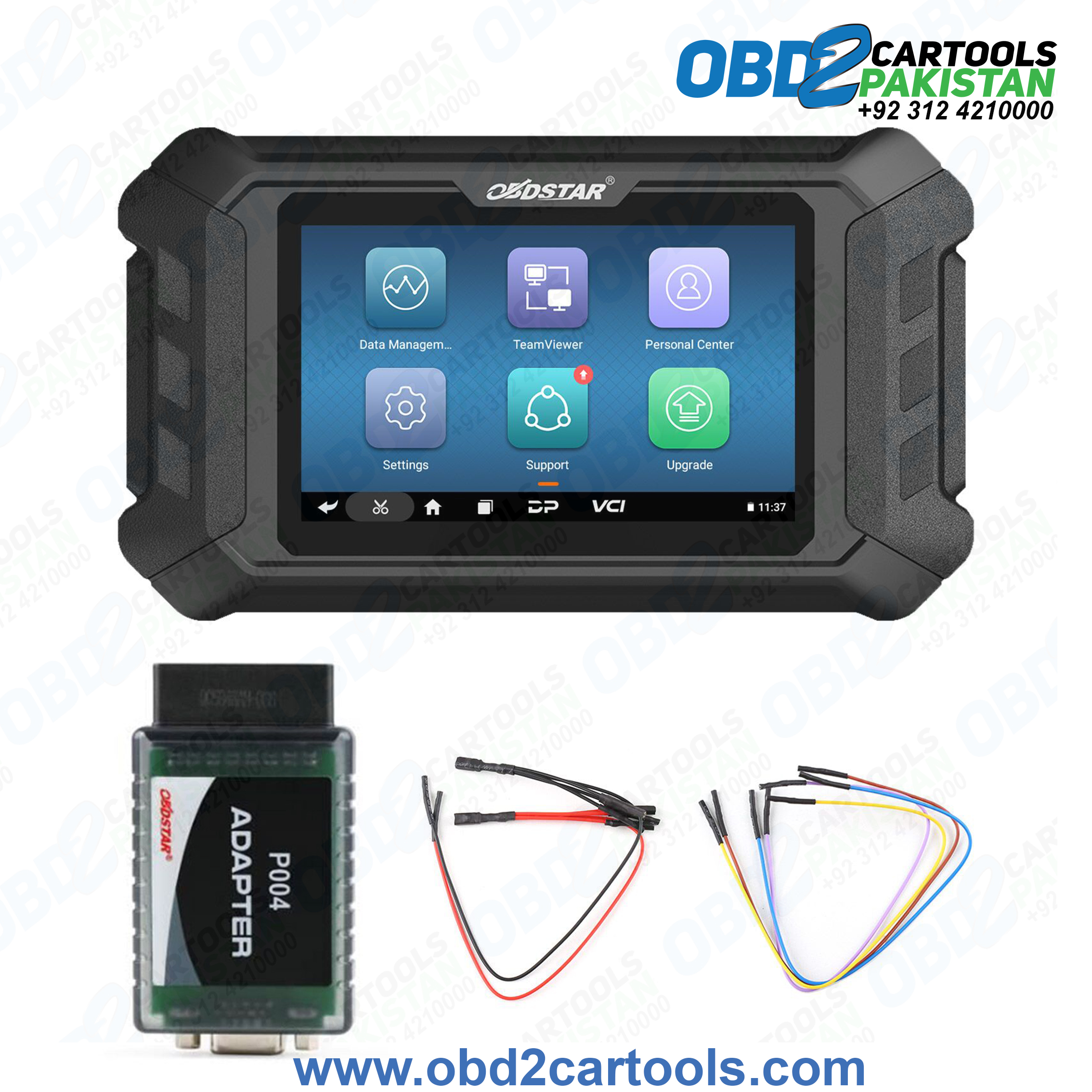

P004 Highlights:
P004 adapter is designed for ECU programming, reading or writing data in bench mode. It has merits below:
1. Programming devices keep in normal communication no matter turn on or off 12V power button;
2. Turn on or off 120Ω resistance at any time for CAN BUS ECU;
3. Support 6&14 and 3&11 CAN BUS Protocol at the same time;
4. Optional CAN FD adaptor (Mainly used for models after 2020, such as HYUNDAI/KIA, etc.);
5. Support GM Single CAN(GM SCAN);
6. Support K-line Protocol;
7. P004 jumper can connect with multiple wires at the same time, make wiring clearer and easier;
8. The DB15 connector can communicate with any OBDII-16 I/O interface.
